High Efficiency Tube Chamfering Machine , Portable Pipe Beveling Tools

Name: High Efficiency Tube Chamfering Machine Portable Pipe Beveling Tools
Brand: NODHA
Price: 1 USD

Buy cheap High Efficiency Tube Chamfering Machine , Portable Pipe Beveling Tools product

Brand Name : NODHA

Model Number : IDE-120

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Sets Per Year

Delivery Time : 5-7 Working Days

Packaging Details : Plywood Case

Driven : Electric

Power Supply : 220-240V 1PH 50/60HZ

Motor Power : 1200W

Clamping Range(ID) : 40-110mm

Wall Thickness : ≤15mm

Rotation Speed : 36r/min

Shipping Weight : 28kgs

Packing Size : 610*520*210mm

Standard Bevel angle : 0°, 30°, 37.5°

Refrigeration : Cool Liquid

Contact Now

PIPE BEVELING MACHINE

The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten
draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

Features

In-Situ cold Beveling improves safety
Easy installation & Operation
Self-Centering
Can be placed in any direction
Feed ratchet spanner makes tool feed or back easily
Compact design & Light weight
Electric/ Pneumatic driven for option
Adjust Speed

Application

Oil & Gas filed
Power Plant
Chemical Plant
Nuclear Power Plant
Process Plant & Fabrication
Ship Building & Repair

Specification

Drive Options: Pneumatic, Electric
Air requirement: 900L-1200L/Min@0.6Mpa
Electric requirement: 220-240V 1PH 50/60HZ
Feed mode: Feed spanner, manually
Packaging: Plywood case

Selection Guide

Model	Clamping Range (ID)	Working Range (OD)		Wall Thickness
	mm	inch	mm	mm
80	28-76	3	88.9	≤15
120	40-110	4	114.3	≤15
252	80-240	10	273.05	≤20

Order Guide
Before you place order to us, please let us know the following information:

Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)

Products

High Efficiency Tube Chamfering Machine , Portable Pipe Beveling Tools

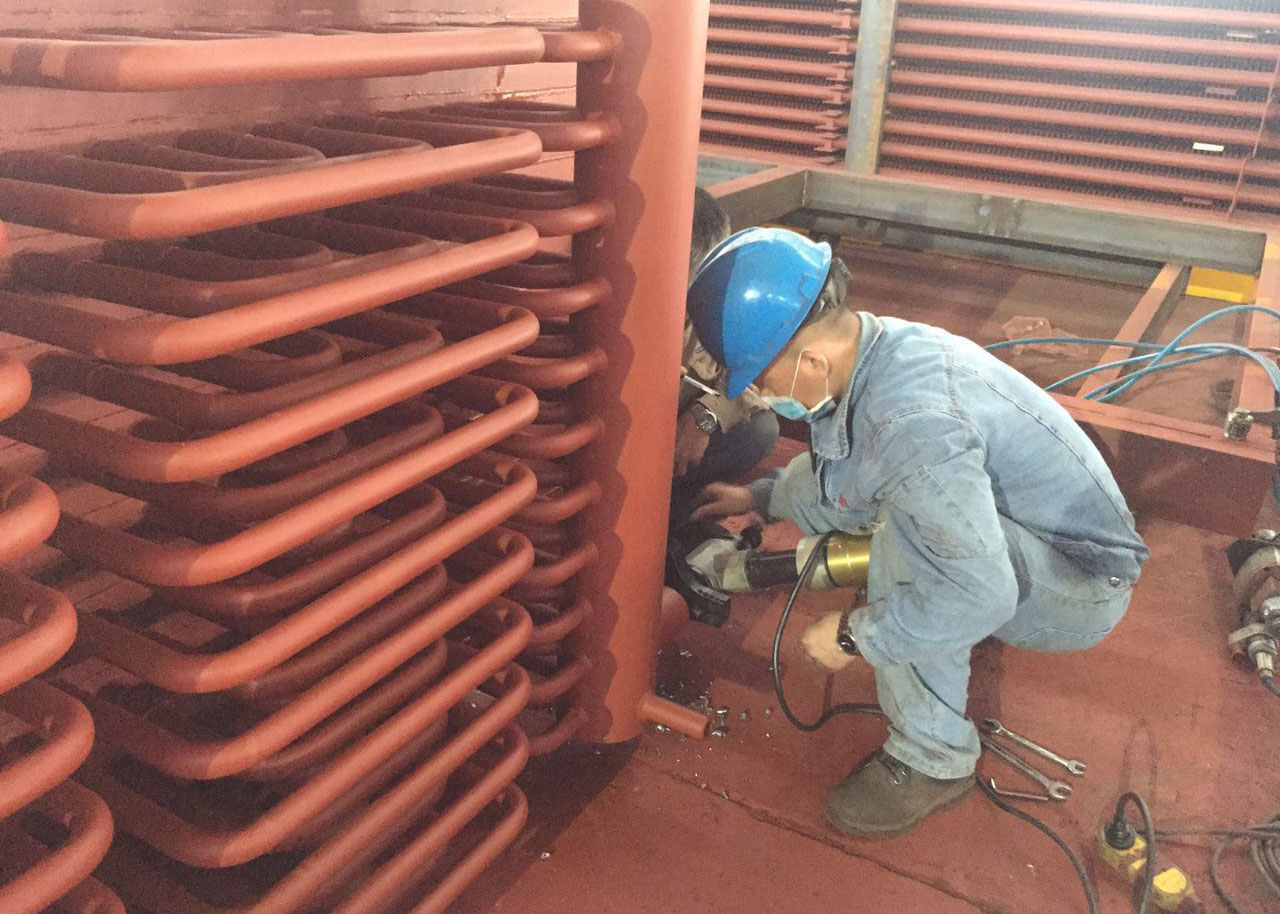

Working On Site

Exhibition

Certification

After-Sale Service

1. Warranty period: 12 months
2. Emergency spare parts required dispatched within 24 hours
