Inner Swell Pneumatic Driven Tube Chamfering Machine Portable Handle

Nodha Industrial Technology Wuxi Co., Ltd
Contact Now

Inner Swell Pneumatic Driven Tube Chamfering Machine Portable Handle

  • 1
  • 2

Brand Name : NODHA

Model Number : IDP-80

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Sets Per Year

Delivery Time : 5-7 Working Days

Packaging Details : Plywood Case/Optional Plastic case

Driven : Pneumatic

Power Supply : 900L/Min@0.6Mpa

Clamping Range(ID) : 28-76mm

Working Range(OD) : 3"(88.9mm)

Wall Thickness : ≤15mm

Rotation Speed : 46r/min

Working Weight : 8.15kgs

Shipping Weight : 16kgs

Packing Size : 500*420*180mm

After-Sale Service Provided : Engineers available to service machinery overseas

Contact Now



PIPE BEVELING MACHINE



The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.





Application



  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Process Plant & Fabrication
  • Ship Building & Repair







Specification



  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case







Selection Guide



Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-110 4 114.3 ≤15
252 80-240 10 273.05 ≤20









Order Guide



Before you place order to us, please let us know the following information:



  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Facing or Inside beveling)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

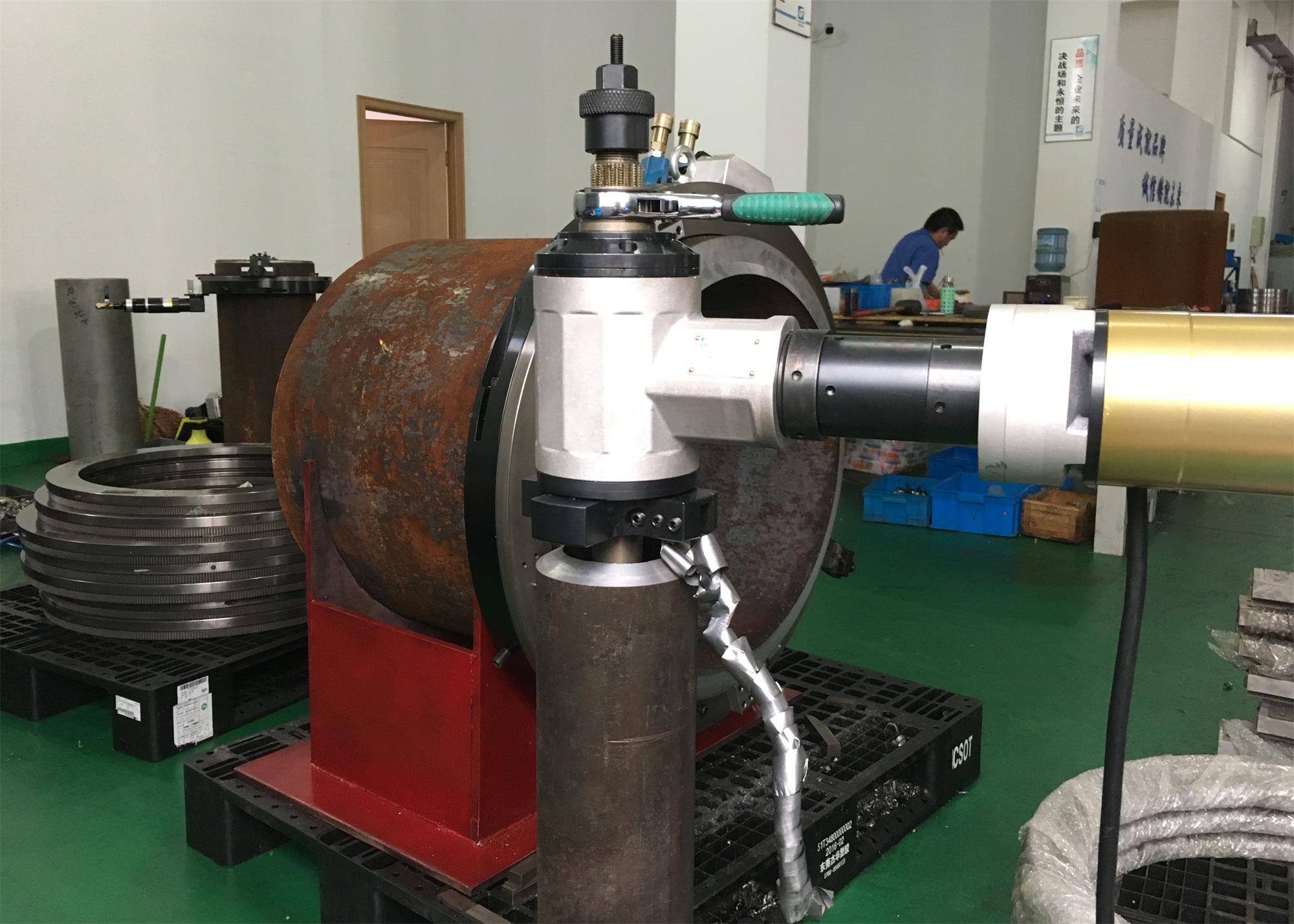

Working On Site



Inner Swell Pneumatic Driven Tube Chamfering Machine Portable Handle







Exhibition



Inner Swell Pneumatic Driven Tube Chamfering Machine Portable Handle







Certification



Inner Swell Pneumatic Driven Tube Chamfering Machine Portable Handle







After-Sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
