ID - Mounted Pneumatic Pipe Beveling Machine For Nuclear Power Plant IDP-80 compact design

Name: ID Mounted Pneumatic Pipe Beveling Machine For Nuclear Power Plant IDP80 compact design
Brand: NODHA
Price: 1 USD

Buy cheap ID - Mounted Pneumatic Pipe Beveling Machine For Nuclear Power Plant IDP-80 compact design product

Brand Name : NODHA

Model Number : IDP-80

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Sets Per Year

Delivery Time : 5-7 Working Days

Packaging Details : Plywood Case/Optional Plastic case

Motor : Air Motor

Power Supply : 900L/Min@0.6Mpa

Clamping Range(ID) : 28-76mm

Working Range(OD) : 3"(88.9mm)

Wall Thickness : ≤15mm

Rotation Speed : 46r/min

Working Weight : 8.15kgs

Packing Size : 500*420*180mm

Feed : Automatic

Bevel Angle : 0°, 30°, 37.5°

Contact Now

Pipe Beveling Machine

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. Tighten draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

Application

Oil & Gas filed
Power Plant
Chemical Plant
Nuclear Power Plant
Process Plant & Fabrication
Ship Building & Repair

Specification

Drive Options: Pneumatic, Electric
Air requirement: 900L-1200L/Min@0.6Mpa
Electric requirement: 220-240V 1PH 50/60HZ
Feed mode: Feed spanner, manually
Packaging: Plywood case

Selection Guide

Model	Clamping Range (ID)	Working Range (OD)		Wall Thickness
	mm	inch	mm	mm
80	28-76	3	88.9	≤15
120	40-110	4	114.3	≤15
252	80-240	10	273.05	≤20

Typical Buttwelding Joint

ID - Mounted Pneumatic Pipe Beveling Machine For Nuclear Power Plant IDP-80 compact design

Order Guide

Before you place order to us, please let us know the following information:

Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Facing or Inside beveling)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed

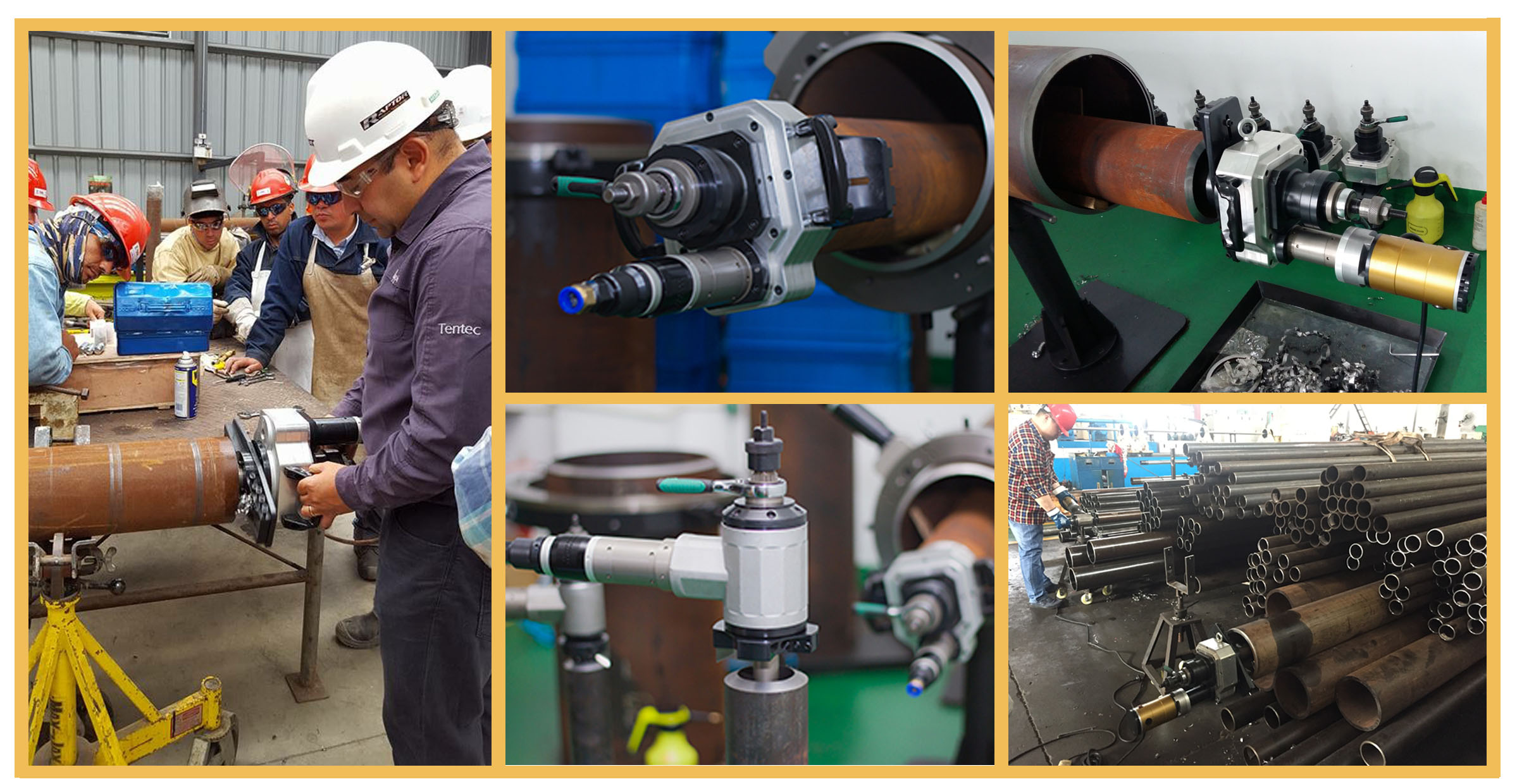

Working On Site

ID - Mounted Pneumatic Pipe Beveling Machine For Nuclear Power Plant IDP-80 compact design

Exhibition

ID - Mounted Pneumatic Pipe Beveling Machine For Nuclear Power Plant IDP-80 compact design

After-Sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
