PIPE BEVELING MACHINE

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

Features

• Right angle tool rigidly mounts to tube I.D.
• Easy set-up & Operation
• Self-centering Clamping systerm
• Can be positioned in any direction
• Electric or Pneumatic driven for option

Application

• Oil & Gas filed
• Power Plant
• Chemical Plant
• Nuclear Power Plant
• Process Plant & Fabrication
• Ship Building & Repair

Specification


• Drive Options: Pneumatic, Electric
• Air requirement: 900L-1200L/Min@0.6Mpa
• Electric requirement: 220-240V 1PH 50/60HZ
• Feed mode: Feed spanner, manually

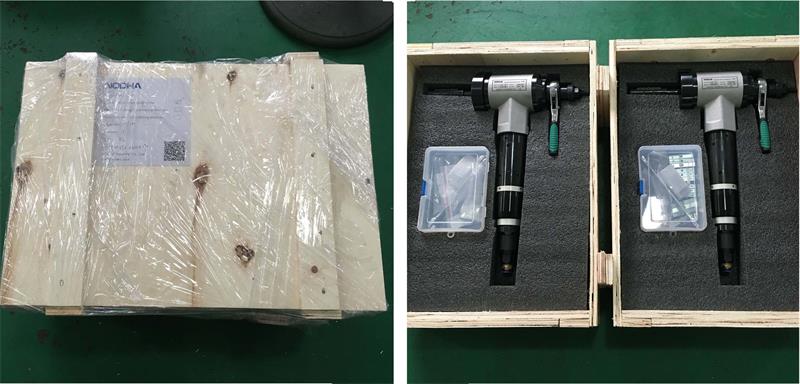

• Packaging: Plywood case

Selection Guide

Tool Bits

Order Guide

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed
