0-45 Degree High Efficiency Plate Edge Milling Machine Non - Pollution

Name: 045 Degree High Efficiency Plate Edge Milling Machine Non Pollution
Brand: NODHA
Price: 1 USD

Buy cheap 0-45 Degree High Efficiency Plate Edge Milling Machine Non - Pollution product

Brand Name : NODHA

Model Number : GMMA-25AU

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Year

Delivery Time : 14 Working Days

Packaging Details : 90*65*114 cm Plywood Case

Motor voltage : 380V 3PH 50Hz

Motor power : 4800W

Motor speed : 750-1050 r/min

milling speed : 0-1500 mm per min

Bevel angle : 0 to -45 degree (adjustable)

Plate thickness : 8 to 60mm

Package : plywood case

0 degree milling depth : 50mm

N.w : 260 kgs

Contact Now

0 to -45 Degree Plate Steel Plate Edge Milling Machine Vertical Facing d X Type for 8 to 60mm thick Plate

Introduction

GMMA-25AU Automatic walking and milling machine , it process plate automatically with high efficiency; completely cold cutting, non-oxidation on the surface; for the milling cutter, the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution.Clamp 8-60mm steel plate. worktable height 750-780mm

Features

be used to process iron, chromium iron, fine-grained steel, aluminum products,

copper and aluminum alloy.

Can be processed into “X” and Vertifical –shaped bevel and vertical Facing

Cold cutting, non-oxidation on the surface

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 0 ~ 45 degree.

Application

The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.

0-45 Degree High Efficiency Plate Edge Milling Machine Non - Pollution

Machine parameters

Motor voltage:AC 380V 50Hz	Motor power: 4.8 KW
motor speed:750~1050 r/min	bevel speed:750-1500 mm/min
single bevel width: 20mm	Max bevel width: 0-70mm
Thickness of the plate:8~60mm	Plate bevel angle : 10~60 deg
Net weight :245kg	Mini clamping plate width: 300*200

Exhibition

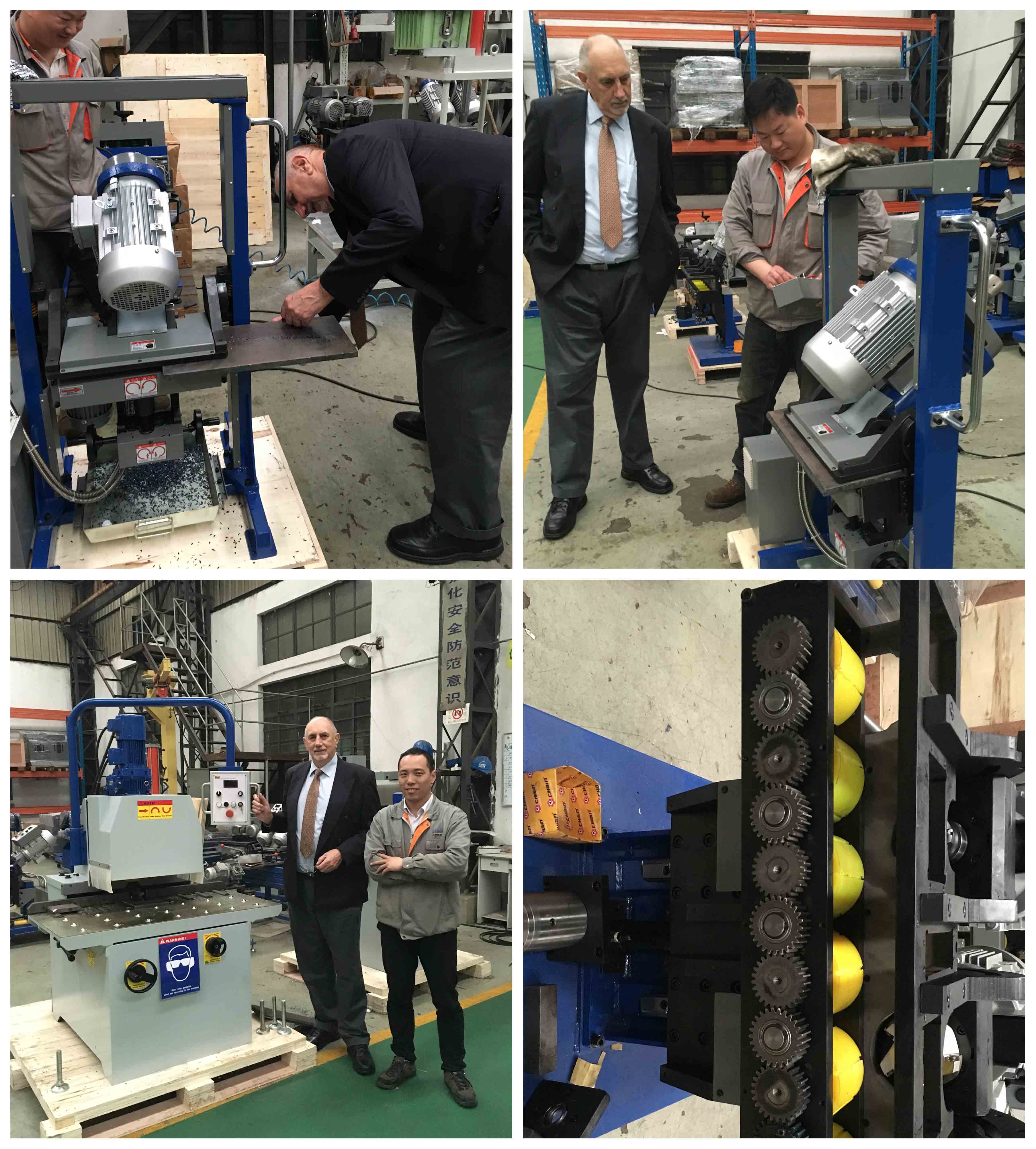

0-45 Degree High Efficiency Plate Edge Milling Machine Non - Pollution

Certificate

0-45 Degree High Efficiency Plate Edge Milling Machine Non - Pollution

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
