4800W Cold Cutting Plate Edge Milling Machine For Aerospace Industry

Name: 4800W Cold Cutting Plate Edge Milling Machine For Aerospace Industry
Brand: NODHA
Price: 1 USD

Buy cheap 4800W Cold Cutting Plate Edge Milling Machine For Aerospace Industry product

Brand Name : NODHA

Model Number : GMMA-25AU

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Year

Delivery Time : 15 Working Days

Packaging Details : 90*65*114 cm Plywood Case

Motor voltage : 380V 3PH 50Hz

Motor power : 4800W

Motor speed : 750-1050 r/min

milling speed : 0-1500 mm per min

Bevel angle : 0 to -45 degree (adjustable)

Plate thickness : 8~ 60mm

Package : plywood case

Shipping Weight : 303 KGS

Net Weight : 253 kgs

Contact Now

Cold Beveling Plate Steel Plate Edge Milling and Beveling Machine Vertical Facing d X Type for Upside and Underside

Introduction

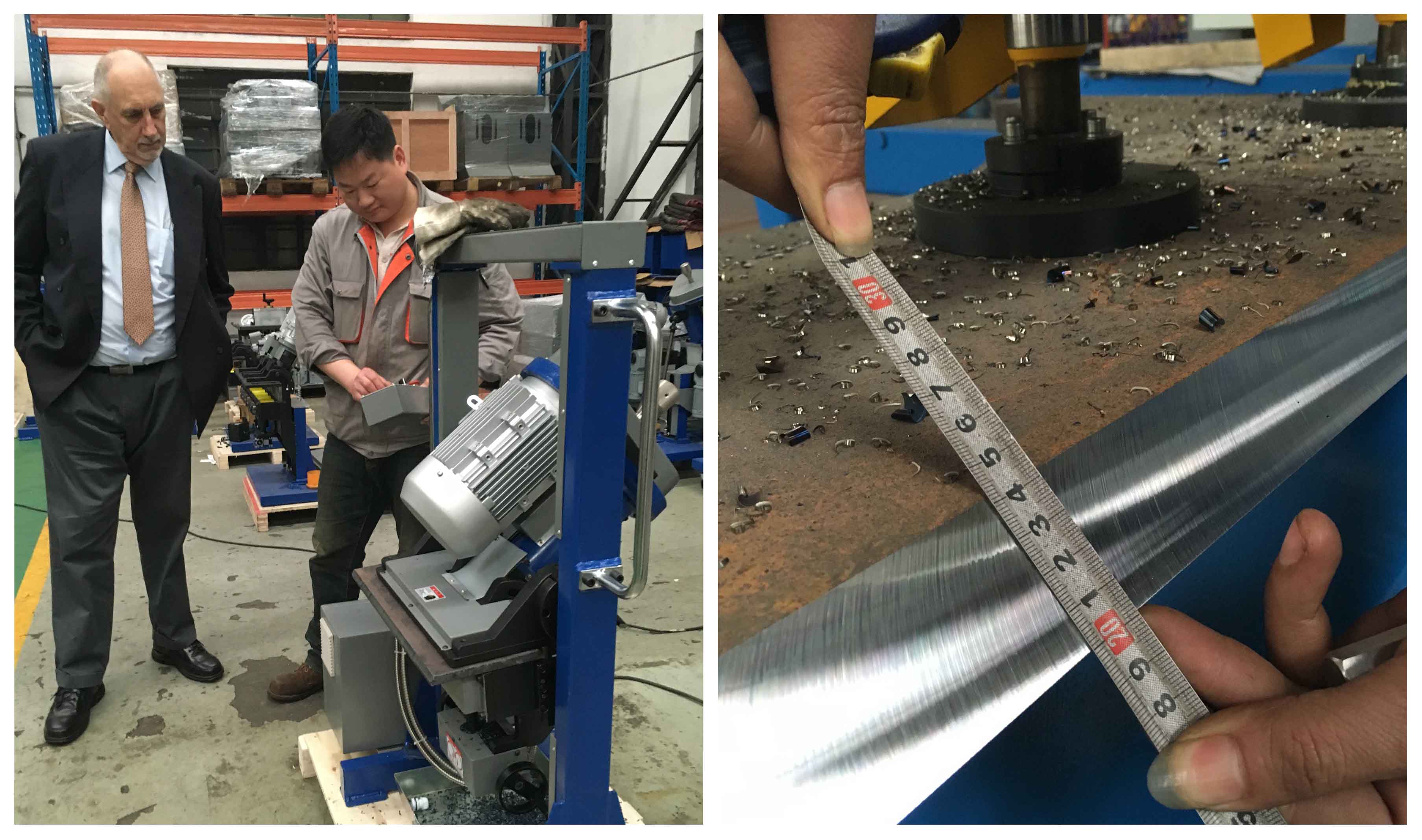

GMMA-25AU Automatic walking and milling machine , it process plate automatically with high efficiency; completely cold cutting, non-oxidation on the surface; for the milling cutter, the finish on the surface is satisfy with the requirement in welding industry; easily operate and non-pollution.Clamp 8-60mm steel plate.

Features

be used to process iron, chromium iron, fine-grained steel, aluminum products,

copper and aluminum alloy.

Can be processed into “X” and Vertifical –shaped bevel and vertical Facing

Cold cutting, non-oxidation on the surface

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 0 ~ 45 degree.

Application

The types of machine can be used in engineering machinery, steel structures, pressure vessels, shipbuilding, and the aerospace industry.

4800W Cold Cutting Plate Edge Milling Machine For Aerospace Industry

Machine parameters

Motor voltage:AC 380V 50Hz	Motor power: 4.8 KW
motor speed:750~1050 r/min	bevel speed:750-1500 mm/min
single bevel width: 20mm	Max bevel width: 0-70mm
Thickness of the plate:8~60mm	Plate bevel angle : 10~60 deg
Net weight :245kg	Mini clamping plate width: 300*200

Exhibition

4800W Cold Cutting Plate Edge Milling Machine For Aerospace Industry

Certificate

4800W Cold Cutting Plate Edge Milling Machine For Aerospace Industry

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
