Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range

Nodha Industrial Technology Wuxi Co., Ltd
Contact Now

Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range

  • 1
  • 2
  • 3

Brand Name : NODHA

Model Number : IDE-80

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Sets Per Year

Delivery Time : 5-7 Working Days

Packaging Details : Aluminium Alloy Case

Motor : Electric Motor

Motor Power : 1200W

Clamping Range(ID) : 28-76mm

Working Range(OD) : 3"(88.9mm)

Wall Thickness : ≤15mm

Rotation Speed : 48r/min

Shipping Weight : 18kgs

Packing Size : 500*420*180mm

Feed : Automatic

Standard Bevel angle : 0°, 30°, 37.5°

Refrigeration : Cool Liquid

Warranty : One Year

Contact Now


PIPE BEVELING MACHINE


The ID-Mounted beveling operation use an expandable mandrel which is insert into the open end of the pipe. Tighten

draw nut extend the expanding blocks and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the pipe from the end, a bevel is finished which conforms to the bevel angle required. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.







Features



  • In-Situ cold Beveling improves safety
  • Easy installation & Operation
  • Self-Centering
  • Feed ratchet spanner makes tool feed or back easily
  • Compact design & Light weight
  • Electric/ Pneumatic driven for option
  • Adjust Speed







Application



  • Oil & Gas filed
  • Power Plant
  • Chemical Plant
  • Nuclear Power Plant
  • Ship Building & Repair







Specification



  • Drive Options: Pneumatic, Electric
  • Air requirement: 900L-1200L/Min@0.6Mpa
  • Electric requirement: 220-240V 1PH 50/60HZ
  • Feed mode: Feed spanner, manually
  • Packaging: Plywood case







Selection Guide



Model

Clamping Range

(ID)

Working Range

(OD)

Wall Thickness
mm inch mm mm
80 28-76 3 88.9 ≤15
120 40-110 4 114.3 ≤15
252 80-240 10 273.05 ≤20

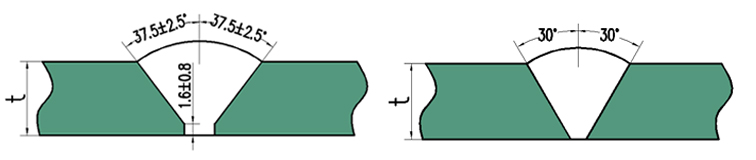

Typical Buttwelding Joint

Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range







Tool Bits



Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range







Standard Supply



  • Machine
  • 1 cutting tool bit
  • 1 30 degree beveling tool bit
  • 1 37.5 degree beveling tool bit
  • Air/Electric motor
  • Manual
  • Expanding block
  • Wrench
  • Guarantee card

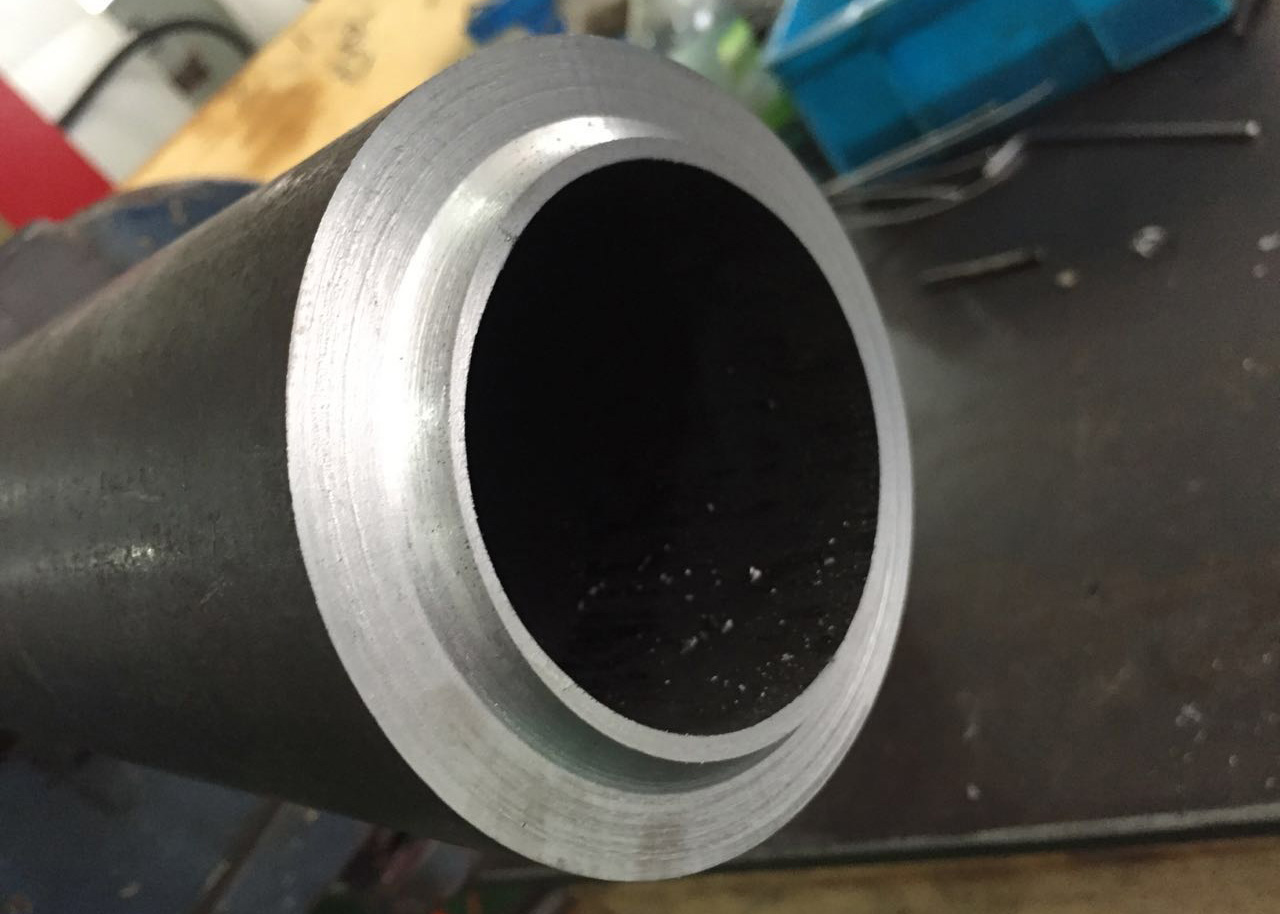

Working On-site



Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range







Exhibition



Automatic Feed Electric Pipe Beveling Machine 28-76mm Clamping Range







After-Sale Service



1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
